    Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0

    Ask Lasest Price
    Brand Name : BQZYX
    Model Number : ZYX074
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 190000 Pieces per Month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0

    Specification

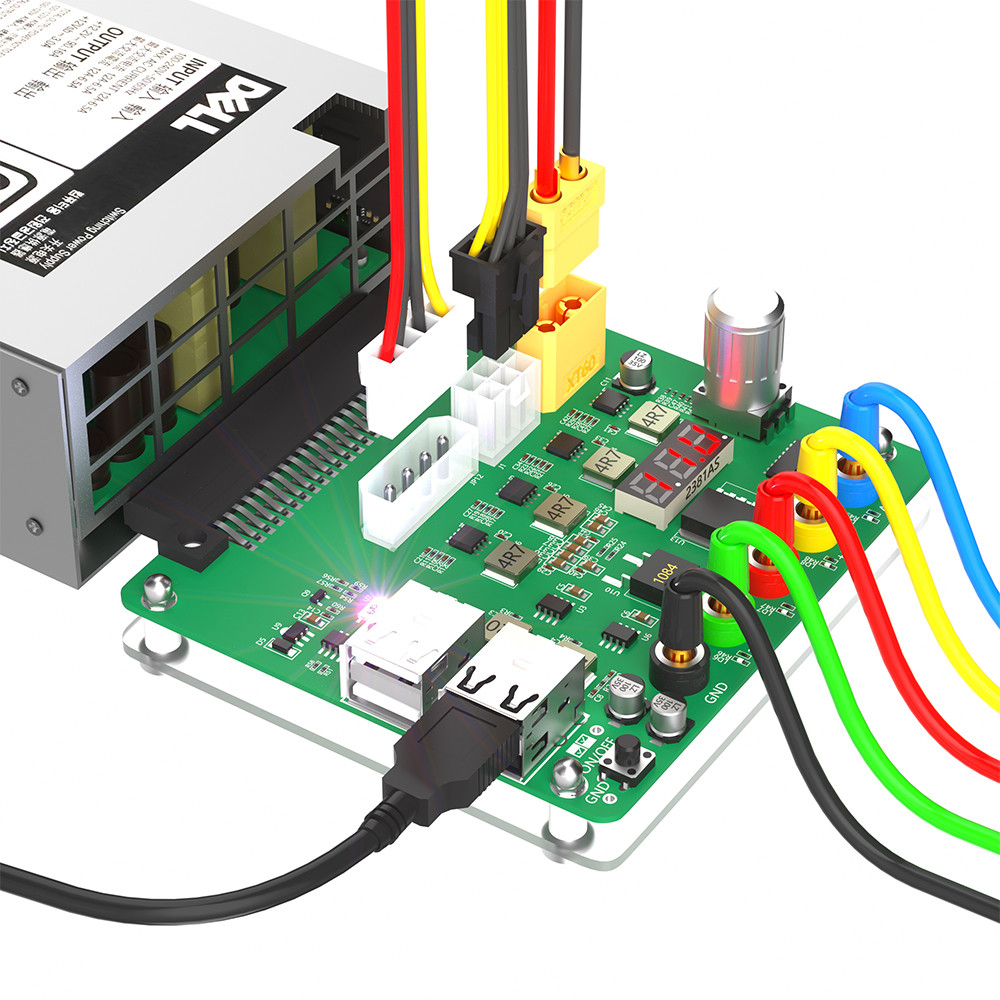

    1,Product Name: Power Supply Breakout Board for Dell brand PSU
    2,This power supply breakout board, with ADJ adjustable voltage knob, supports 3.3V, 5V, 12V and 1.8V-10.8V (ADJ) output voltage.
    3,4 USB 2.0 ports design, supports QC 2.0/QC 3.0.
    4,The voltage output terminals correspond to each screw terminal.
    5,At the same time, the bottom panel is also equipped with an acrylic case kit for easy to use.
    6,Compatible with 3.3V: STM32 MCU, network communication equipment, such as Wi-Fi Bluetooth and other devices, generally for microcontrollers, and some low-power modules, etc. 5V: Raspberry Pi, Banana Pi, Tinker Board, Nano Pi, USB interface, etc.
    7,Compatible with 9V: Arduino, motor drive, display driver module, etc. 12V: motor drive, LED light, vehicle equipment with power requirements less than 24w, etc.

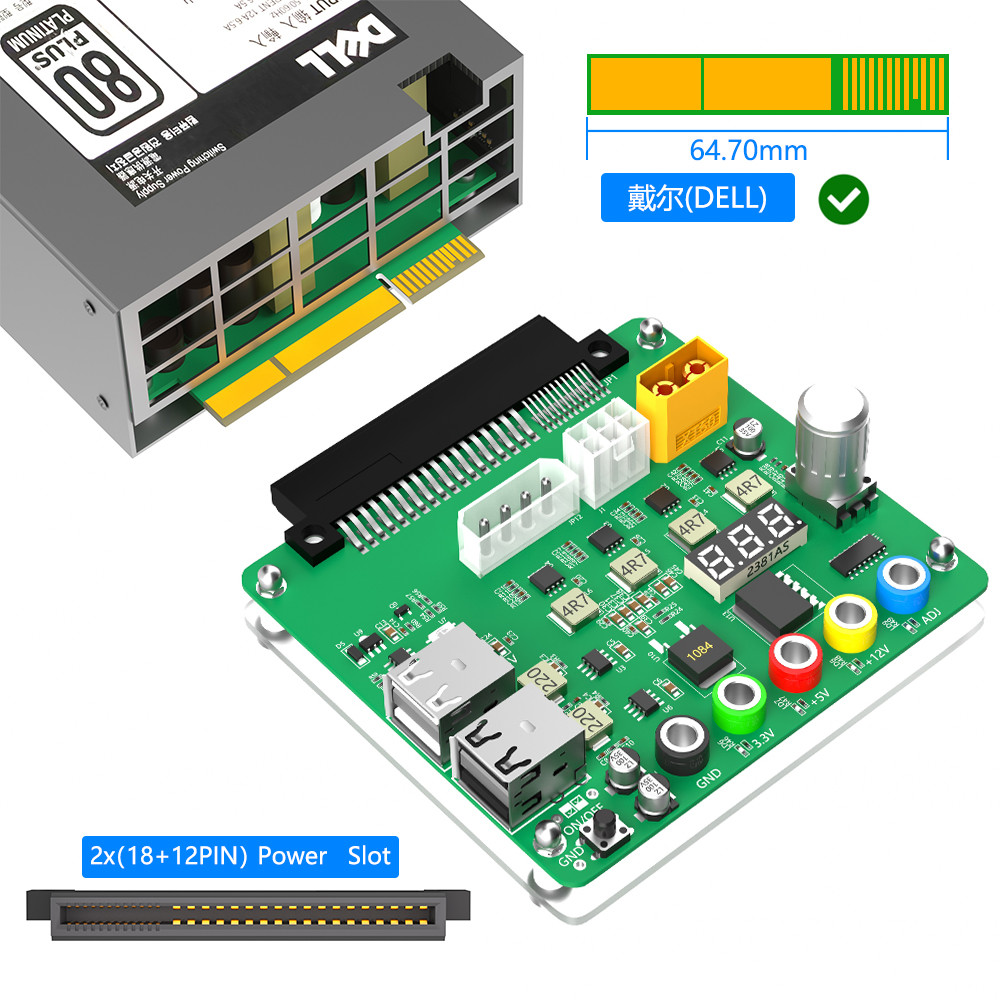

    8,this board is only suitable for Dell brand PSU and the following model listed.
    750 Watt Platinum Rated 94% Efficiency 110-240v:D750E-S1, DPS-750AB-2 A, 05NF18
    D750E-S6, DPS-750AB-15B, 05RHVV
    E750E-S1, 700-013536-0100, 00XW8W
    F750E-S0, S-0750ADU00-101, 06W2PW
    L750E-S0, PS-2751-13D-LF, 0W8R3C
    750w Watt Titanium Rated 96% Efficiency 200-240v:D750E-S7, DPS-750AB-17 A, 0KNHJV
    1100 Watt Platinum Rated 94% Efficiency 110-240V:D110E-S0, DPS-1100BB B, 0PR21C
    E1100E-S0, AA26510L, 0YT39Y
    L1100E-S0, PS-2112-4D2-LF, 038GYJ
    L1100E-S1 , PS-2112-8D2, 09TMRF
    1050w @ 100-120V input
    1100w @ 200-240V input
    2000 Watt Platinum Rated 94% Efficiency 110-240V:D200E-S2, DPS-2000EB-2 A, 0960VR
    1000w @ 100-120V input
    1750w @ 200-205V

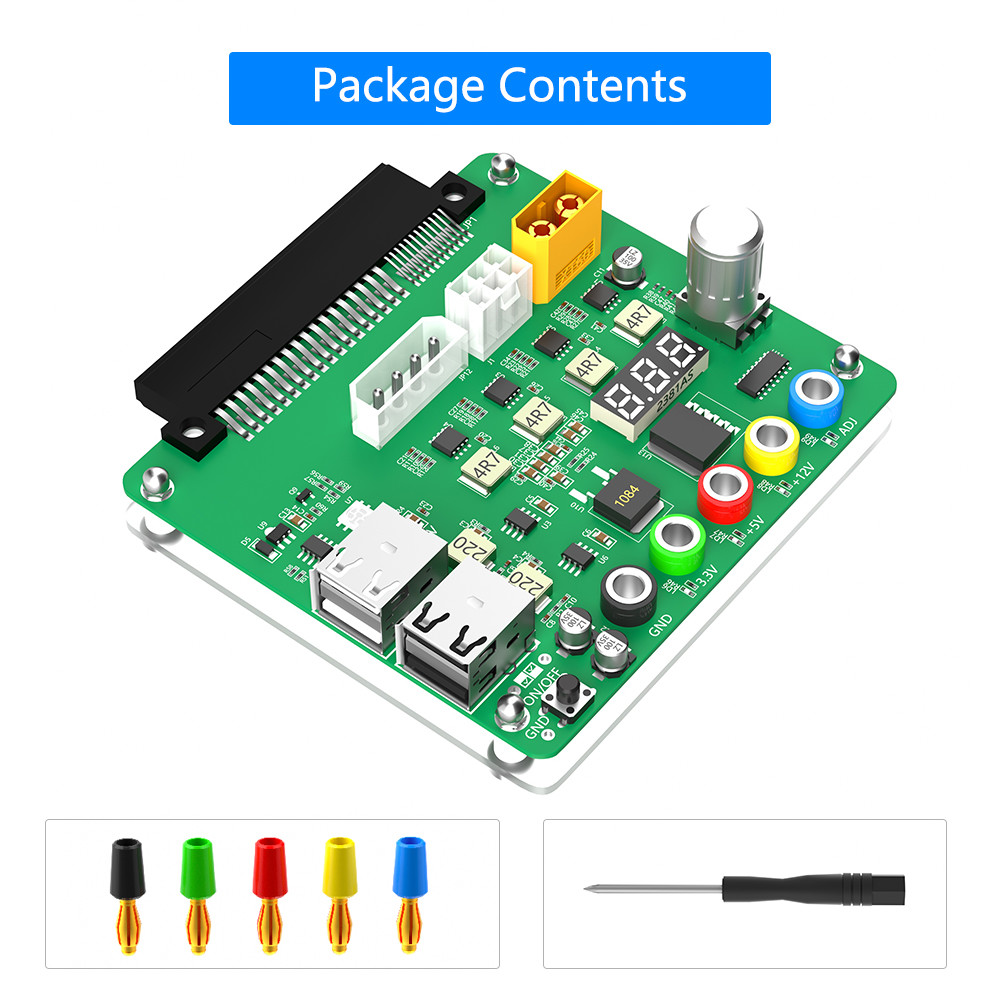

    Package Contents
    1 x Board Adapter
    1 x Screwdriver
    5x male banana Plug
