Brand Name : | BQZYX |
Model Number : | ZYX079 |
Price : | Negotiation |
Payment Terms : | T/T, Western Union |
Supply Ability : | 190000 Pieces per Month |
Delivery Time : | 10-15 work days |

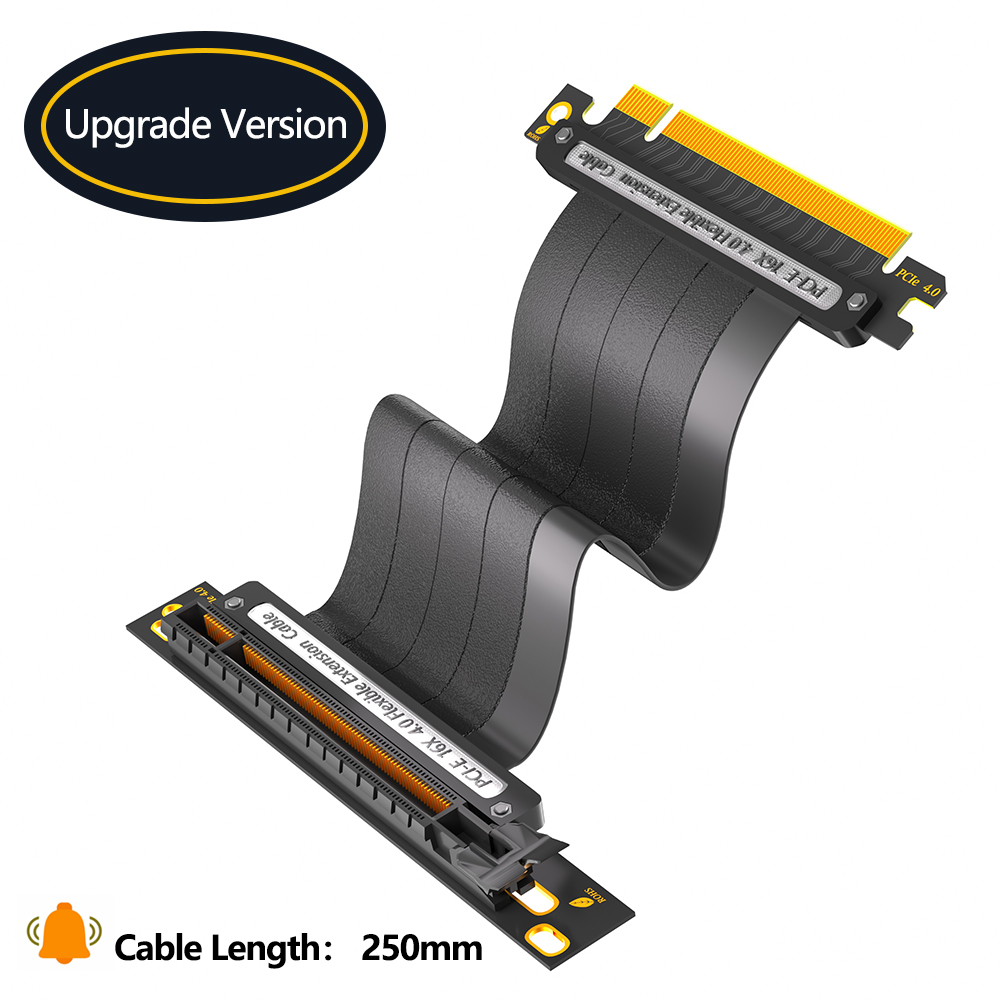

PCIE 4.0 Extension Cable, Black 16x Shielded High Speed GPU Riser Cable with PCI Express Port for GPU Extension Card, Length 20cm(90 Degree )
Specification:
1.PCI-E 4.0 riser cable design high quality hand-soldered gold pin, allowing for maximum conductivity and ensure signal integrity. Using imported cables with pure copper tinned cores, this power cable extension gives you full-speed, stable and almost attenuation-free signal transmission.
2.Imported silver-plated cable with up to 64GB/S, in line with PCIE 4.0 transmission standard and remains backward compatible with a maximum transfer speed. Enhanced 12V power supply with 12PIN silver-plated cable delivers 12V to meet the needs of 4090 high-power graphics cards.
3.With segmented design, this GPU riser cable allows for airflow, making it easy to reduce operating temperature and improve overall system performance.
4. Plug and play, no BIOS setup required. Featuring a unique cable protector that effectively enhances the durability of the extender as well as prevents cable damage, even if the extender is folded or twisted, this GPU extension cable provides the best connectivity and lifespan.
5.Compatible with most GPU/motherboard components and fits most cases. Supports PCIE 4.0/3.0/2.0/1.0, compatible with RTX4090 and all gen 4 GPUs, RTX3090ti, RTX3090, RTX3080ti, RTX3080, RTX3070ti, RTX3070, RTX3060ti, RTX3060, RX6950XT, RX6900XT, RX6800XT, RX6800, RX6700XT, RX6600XT, RX6500XT / Chipset - x570, B550, Z590, Z690
PCI-E 16X 4.0 to PCI-E 16X 4.0 90 degree extension cable: an efficient and stable data transmission expansion solution
In the era of rapid development of computer hardware, PCI-E interface, as the core channel for high-speed data exchange between devices, has attracted much attention for its performance and flexibility. The PCI-E 4.0 standard promotes hardware ecosystem innovation with a single channel transmission rate of 16 GT/s and a theoretical bandwidth of 64 GB/s in both directions. The PCI-E 16X 4.0 to PCI-E 16X 4.0 90 degree extension cable, designed specifically for space optimization and flexible wiring, provides users with an efficient, stable, and adaptable data transmission solution for complex scenarios with its unique elbow structure and cutting-edge technology.
Core advantages of PCI-E 4.0 technology
1. High bandwidth transmission capability:
The PCI-E 4.0 standard increases the single channel transmission
rate to 16 GT/s, and in 16X channel mode, it can achieve a
theoretical bandwidth of 64GB/s in both directions, which is twice
as high as PCI-E 3.0. This performance enables the 90 degree
extension cable to easily handle bandwidth sensitive applications
such as real-time 4K video editing, loading of large game scenes,
and massive server data throughput, significantly reducing data
processing time and improving overall system response speed.
2.Enhanced signal stability:
PCI-E 4.0 adopts 128 b/130 b encoding technology, which embeds
verification information in the data to achieve real-time detection
and correction of transmission errors, reducing the bit error rate.
At the same time, optimizing signal drive strength and equalization
algorithms, combined with strict electrical parameter
specifications, reduces signal attenuation and distortion during
long-distance transmission, ensuring stable data transmission in
complex electromagnetic environments. The 90 degree extension cable
undergoes special signal processing at the bend to avoid signal
loss caused by angle changes and ensure the reliability of data
transmission.
3.Low latency architecture design:
By streamlining protocol processing and optimizing link management
mechanisms, PCI-E 4.0 significantly reduces data transmission
latency. For scenarios such as millisecond level operation feedback
in esports games and real-time command response from industrial
automation equipment, a 90 degree extension cable can ensure fast
data transmission and improve the real-time interaction performance
of the system. Its unique 90 degree design saves space without
affecting the low latency characteristics of data transmission.
4. Good compatibility:
PCI-E 4.0 has backward compatibility and can seamlessly collaborate
with PCI-E 3.0 and PCI-E 2.0 devices. Users do not need to replace
all components when upgrading hardware, and can gradually build
high-performance systems, reducing upgrade costs and promoting a
smooth transition of technology. The 90 degree extension cable also
supports compatibility with devices across generations and adapts
to hardware environments at different stages.
Analysis of PCI-E 4.0 Cable Technology
1. High quality conductor material:
The PCI-E 90 degree extension cable conductor uses 99.99% oxygen free copper (OFC) with a resistivity of 0.0175 Ω· mm ²/m, which is 12% lower than ordinary copper materials and effectively reduces signal transmission losses. Adopting a multi strand twisted structure with a single strand diameter of 0.09mm, the skin effect during high-frequency signal transmission is suppressed by optimizing the twisted angle and pitch. At a rate of 16 GT/s, the signal attenuation is controlled within -2.5dB/5GHz, meeting the performance requirements of PCI-SIG for PCI-E 4.0 wire. At the bend, the conductor undergoes special reinforcement treatment to ensure the continuity of signal transmission.
2.High performance insulation layer:
The insulation layer is made of polyethylene (PE) foam material
with a dielectric constant of 1.5, which is 40% lower than
traditional materials and significantly reduces the dielectric loss
of signal transmission. Through precision extrusion technology, the
thickness of the insulation layer is precisely controlled at 0.18 ±
0.02mm, ensuring that the characteristic impedance of the wire is
stably maintained at 100 ± 3 Ω, effectively avoiding signal
reflection and crosstalk, and ensuring data integrity at a
bandwidth of 64GB/s. For the 90 degree bend, the insulation layer
is designed with increased flexibility to prevent damage caused by
repeated bending.
3.Double layer shielding system:
Due to the susceptibility of PCI-E 4.0 high-frequency signals to
interference, the wire adopts a double-layer shielding design:
Aluminum foil shielding layer: 0.012mm thick aluminum foil tightly wraps around the insulation
layer, with a shielding efficiency of 92% against low-frequency
electromagnetic interference;
Tin plated copper woven mesh: Tin plated copper mesh with a weaving density of ≥ 85%,
possessing good flexibility and conductivity, and a shielding
effectiveness of ≥ 55dB in the 1GHz frequency band
In the 90 degree bend area, a double-layer shielding layer is
reinforced to enhance the shielding effect and ensure stable signal
transmission in complex electromagnetic environments.
4. Precision connector technology:
The PCI-E connectors at both ends of the wire are made of PBT
engineering plastic material, which has high temperature resistance
(180 ℃) and impact resistance characteristics. The terminal adopts
a 3 μ m gold plating process, with a contact resistance of ≤ 60m Ω
and excellent oxidation resistance. The connector adopts a
differential signal independent isolation design internally, which
improves the crosstalk suppression ratio to above -30dB through
physical isolation and optimized wiring. The 90 degree elbow
connector adopts a unique L-shaped structure design, which ensures
the accuracy of signal transmission while facilitating installation
and disassembly in narrow spaces.
Product characteristics and technical implementation of 90 degree extension cable
1.High speed and stable transmission guarantee:
The PCI-E 16X 4.0 to PCI-E 16X 4.0 90 degree extension cable is
designed and manufactured strictly in accordance with the PCI-E 4.0
standard. Through optimized circuit topology and signal
conditioning technology, it can maintain 64GB/s full bandwidth
transmission within a transmission distance of 50cm. After
professional testing, the signal eye opening is ≥ 80%, and the
jitter value is controlled within ± 80ps, achieving zero packet
loss and low latency transmission of data. Even in a 90 degree
bending state, it can still maintain excellent signal transmission
performance.
2.Reliable manufacturing process:
By using ultrasonic welding technology, the connector and wire are
firmly connected, and the tensile strength of the solder joint
reaches 60MPa. After 50000 bending tests and 3000 plug-in life
tests, the reliability of the product is ensured in daily use and
complex environments. Featuring IPX3 waterproof rating and a wide
temperature range of 0 ℃ -70 ℃, it is suitable for various
application scenarios. The 90 degree bend has undergone special
reinforcement treatment, which can withstand greater physical
stress and ensure the service life of the product.
3. Diversified specification selection:
Provide 5 standard lengths of 10-50cm to meet different equipment
layout requirements. The short version is suitable for precise
connection of devices inside compact chassis, while the long
version can achieve flexible interconnection of devices between
cabinets. The 90 degree elbow design is particularly suitable for
space constrained ITX chassis, small servers, and other scenarios,
helping users optimize internal wiring and improve equipment heat
dissipation. We also offer black classic styles that are suitable
for various hardware environments and styles.
Multiple application scenarios:
1. High end graphics card performance release:
In game consoles and graphics workstations, using a 90 degree
extension cable allows for vertical or side mounted graphics cards,
effectively saving internal space and optimizing heat dissipation
ducts. For example, in the ITX chassis, installing the graphics
card on the side through a 90 degree extension cable can reduce the
temperature of the graphics card by 10-15 ℃, improve the
performance release of the graphics card, and help 4K games run
smoothly and professional graphics rendering is efficiently
completed. Its compact 90 degree elbow design perfectly meets the
wiring needs of narrow chassis.
2.Data center storage expansion:
In a data center environment, a 90 degree extension cable can
connect server motherboards to high-performance NVMe SSD arrays,
high-speed network cards, and other devices. With the high
bandwidth characteristics of PCI-E 4.0, it accelerates data
read/write and network transmission, meeting the stringent storage
performance requirements of cloud computing, big data analysis and
other businesses. In high-density server cabinets, the 90 degree
bend design facilitates the neat arrangement of cables, improves
space utilization, and reduces maintenance difficulty.
3. Industrial automation control:
In the field of industrial automation, it is used to connect
industrial computers with high-speed data acquisition cards, motion
control modules, and other equipment. Its low latency and high
stability transmission characteristics ensure fast issuance of
industrial control instructions and real-time transmission of
equipment status data, achieving precise control and efficient
operation of the production line. The compact design of the 90
degree extension cable is suitable for installation environments
with limited internal space in industrial equipment, ensuring
stable operation of the equipment while facilitating later
maintenance and repair.
PCI Express version | Coding scheme | Transfer rate | Throughput | |||
X1 | X4 | X8 | X16 | |||
1.0 | 8b/10b | 2.5GT/s | 250MB/s | 1GB/s | 2GB/s | 4GB/s |
2.0 | 8b/10b | 5GT/s | 500MB/s | 2GB/s | 4GB/s | 8GB/s |
3.0 | 128b/130b | 8GT/s | 984.6MB/s | 3.938GB/s | 7.877GB/s | 15.754GB/s |
4.0 | 128b/130b | 16GT/s | 1.969GB/s | 7.877GB/s | 15.754GB/s | 31.508GB/s |
Package contents:
1x PCI-E 4.0 Extension Cable
![]() |
