    M.2(NGFF) Key A-E To PCI-E 16X Adapter Cable for Fast Data Transfer

    Ask Lasest Price
    Brand Name : BQZYX
    Model Number : ZYX141
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 190000 Pieces per Month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    M.2(NGFF) Key A-E To PCI-E 16X Adapter Cable for Fast Data Transfer

    About Description:


    M.2(NGFF) Key A-E To PCI-E 16X Adapter cable


    Specifications:

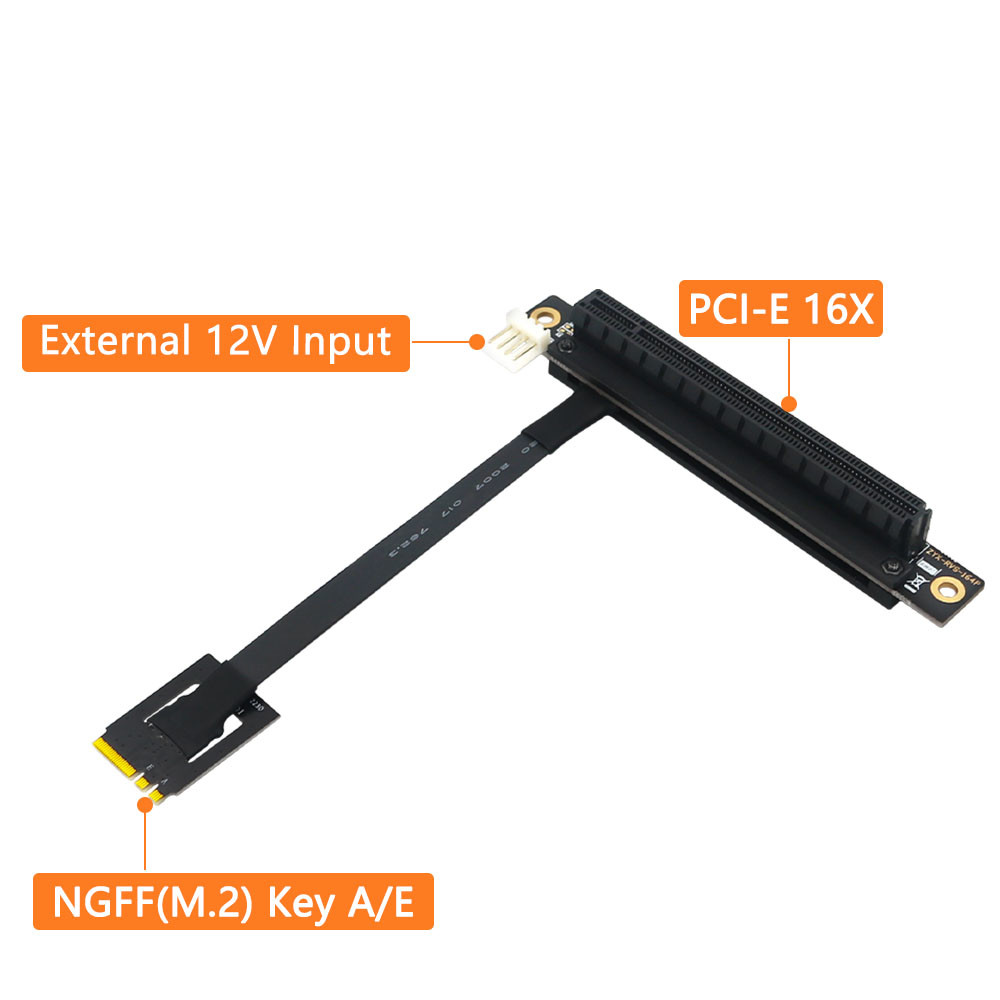

    1.This adapter cable allows you connect any PCI-E device to M.2 Dual Key A-E slot through a stand PCI-E 16X port.
    2.Support M.2 socket with type 2230.
    3.Support 12V power by 4pin FDD power connector for Standard PCI-E device. If your device doesn’t need 12V power input, you won’t connect this attached power cable.
    4.The speed will limit 1X because of the M.2 speed limited.
    5.Using High quality wire, using High quality connector, high frequency support PCI-E 3.0 stable transfer.
    6.No drivers needed for this Adapter.
    7.Supports Win XP, Vista 32/64, Win 7, Win 8, Win10, Win11 or Linux and so on.
    8.System requirement: M.2 Key A or E slot on the motherboard. Sometime this slot support PCI-E WLAN(eg 9260 AX200), however ,there exist exception, If your board only support 9560 or AX201, It won’t support this adapter cable. Because the system interface type of 9560 is CNVio2, not Wi-Fi(PCIe).
    9.Cable length around: 20cm, Total length around: 22.5cm. Cable thickness is around 1.0mm.
    10.It’s also a powerful tool for engineers, or use for PCI-E tester, extender and so on.
    Package contents:

    1x 270 degree M.2(NGFF) Dual Key A-E To PCI-E 16X Adapter cable


    2x M2 Screw

    1x screw driver


    1x FDD 4Pin to SATA Power cable

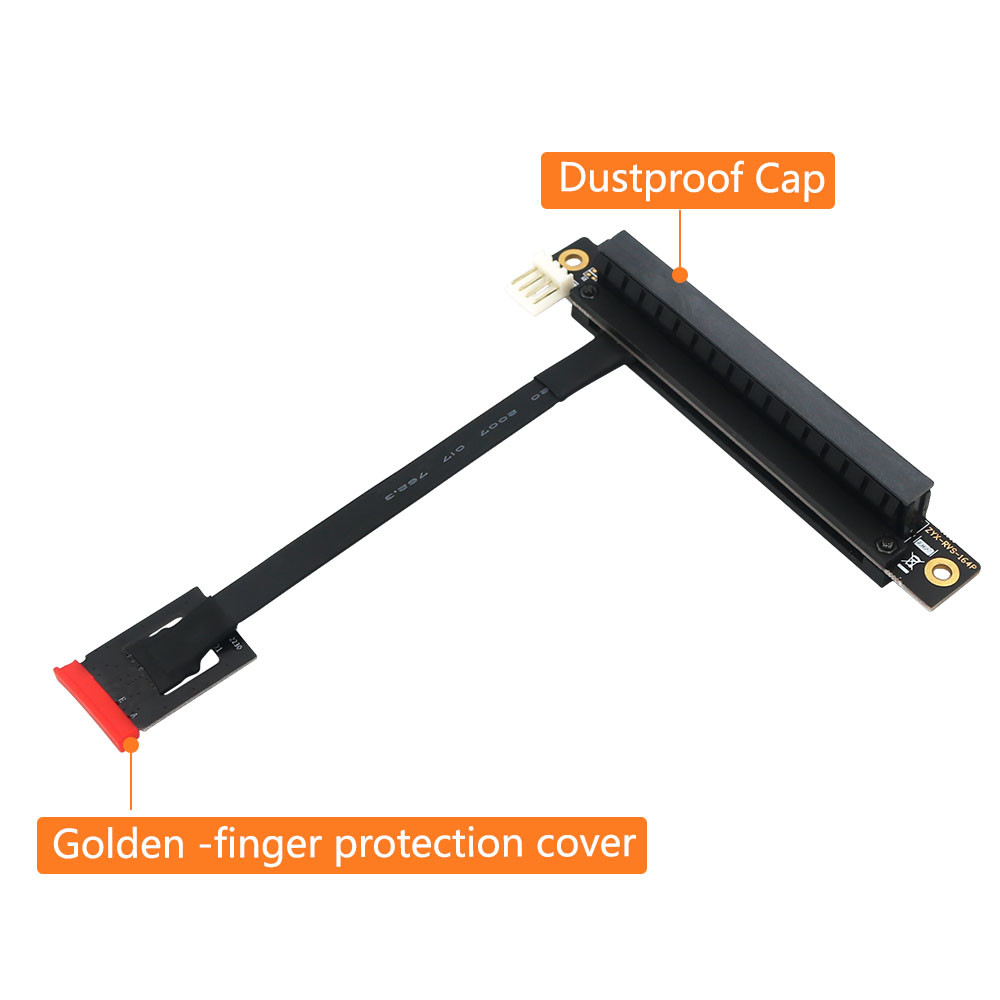

    1x dust cap
