Mini PCI-E/mSATA Adapter (Vertical installation) for 3G/4G, WWAN
LTE ,GPS and MSATA card.
Product specifications:
1.Mini PCI-E/mSATA Adapter (Vertical installation) for 3G/4G, WWAN
LTE ,GPS and MSATA card.
2.Pin to pin design and compatible for 3G/4G/LTE Module and Msata
SSD.

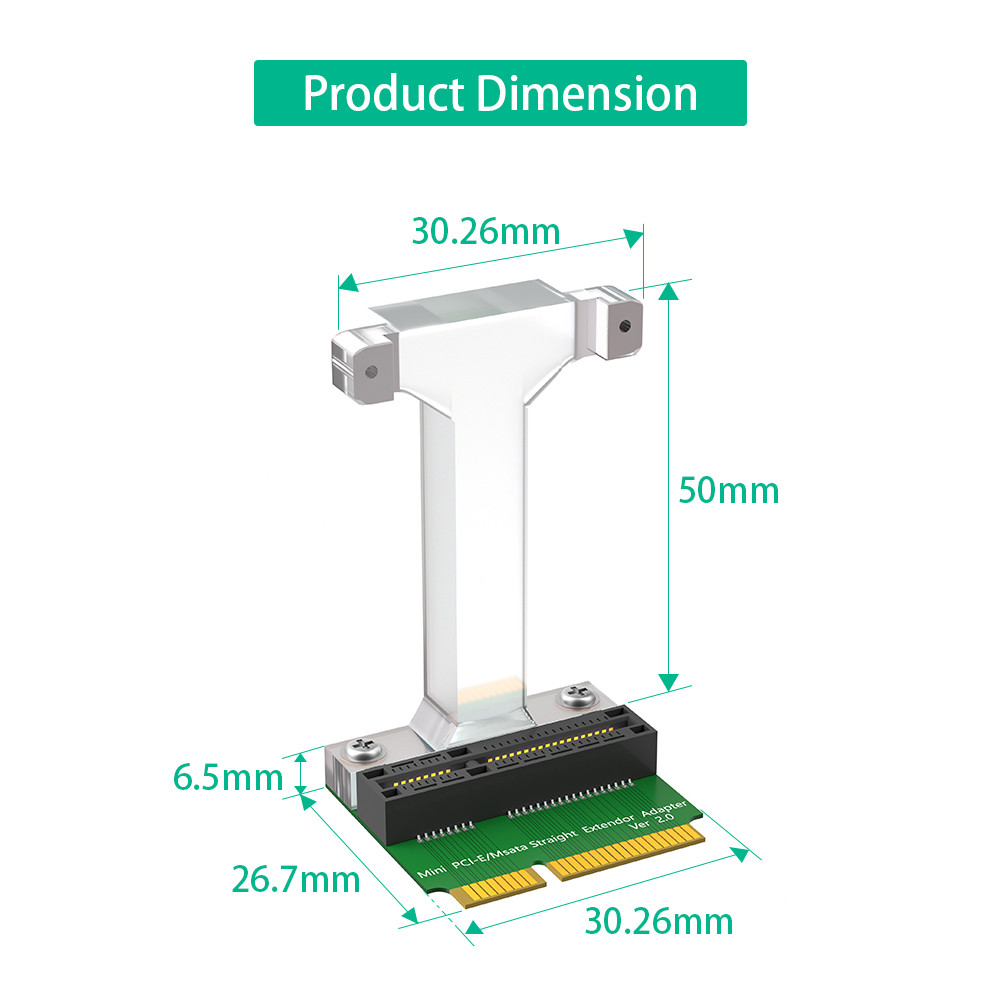

3.Support full-size(30x50.95 mm) msata SSD to half-size(30x26.80
mm) by vertical installation.
4.Support full-size(30x50.95 mm) 3G/4G/LTE Module to
half-size(30x26.80 mm) by vertical installation.
5.Systerm requirement: half size (26.80x30mm) Mini PCI-e slot on
mainboard.
6. Plastic support frame design: more stability and reliability.
Product Overview:
Mini PCI-e/mSATA to Mini PCI-e/mSATA adapter card is a powerful and
practical computer hardware expansion accessory designed to solve
interface adaptation problems encountered by users during device
upgrades and feature expansion. Its core function is to build a
stable and reliable bridge between the commonly used interfaces
Mini-PCI-e and mSATA, allowing users to easily connect various
advanced network card modules or high-speed mSATA hard drives to
the corresponding interfaces on the motherboard, thereby
significantly improving the network performance and storage
capacity of the computer system, meeting users' diverse needs for
efficient office, smooth entertainment, and big data storage.
Product features:
Excellent interface performance.
1.Precise slot design: One end of the adapter card is carefully designed with a standard
Mini PCI-e/mSATA vertical slot, and its internal interface
structure strictly follows industry standards to ensure perfect
compatibility with various network card modules and mSATA hard
drives. Whether it is a high-performance network card using the
latest technology or an advanced mSATA hard drive with large
capacity storage, it can be easily inserted into the slot and
maintain a tight and stable connection state. This precise
adaptation not only ensures the stability of the device's physical
connection, but more importantly, lays a solid foundation for
high-speed data transmission, effectively avoiding data
transmission interruptions, errors, and other problems caused by
loose interfaces or poor contacts, allowing your data transmission
to proceed smoothly.
2.Efficient and stable gold finger connection:The Mini PCI-e/mSATA gold finger on the other end is a key
component that has been carefully polished and optimized. Made of
high-quality metal materials, it has excellent conductivity and
wear resistance, ensuring good contact performance even during
repeated insertion and removal of Mini PCI-e/mSATA slots on the
motherboard. The pin layout of the Golden Finger is strictly
designed according to standards, and every contact point with the
motherboard slot can be accurately docked, minimizing attenuation
and interference during signal transmission, thus achieving
efficient and stable data transmission. This means that when you
use an adapter card to connect to a network card or hard drive, you
can enjoy almost the same transfer speed and stability as the
native interface. Whether it's fast transfer of large files or
smooth playback of online high-definition videos, you can easily
handle it without any pressure.
Exquisite structural design:
1.Practical transparent vertical bracket: The transparent vertical bracket that comes with the product is
one of its major design highlights. This bracket is made of
high-strength and transparent engineering plastic, which not only
has good toughness and durability, but also its transparent
appearance design can add a technological beauty to the interior of
your computer. The installation method of the bracket is simple and
fast. With specially designed card slots and fixing screws, the
adapter card can be firmly fixed in the appropriate position,
ensuring that it will not shake or shift during operation. At the
same time, the bracket also takes into account the installation
requirements of Mini PCI-e full height network card and mSATA full
height hard drive. Its internal space and fixed structure have been
carefully optimized to accurately lock these devices and maintain a
tight connection with the adapter card, further enhancing the
stability and reliability of the entire system. Even when the
computer is subjected to a certain degree of vibration or impact,
the bracket can effectively protect the adapter card and connected
devices, avoiding hardware damage caused by accidental collisions
and providing comprehensive security for your device.
2.Compact and reasonable layout design: The layout design of the entire adapter card is compact and
reasonable, fully considering the limited space environment inside
the computer. The spacing between each component is accurately
calculated to ensure good heat dissipation performance and avoid
signal interference problems that may occur due to overcrowding of
components. On the premise of ensuring functional integrity, the
size of the adapter card has been minimized as much as possible,
making it easy to adapt to various types and specifications of
computer motherboards, providing great convenience for users during
installation and use. Whether inside a small laptop or in a
spacious desktop computer case, Mini PCI-e/mSATA adapter cards can
find the right place to seamlessly integrate into your computer
system and unleash their powerful expansion capabilities.
Wide applicability:
Multi scenario application support: This adapter card is suitable
for a variety of different application scenarios due to its
excellent interface compatibility and stable performance. In the
office field, it can help you easily upgrade the network connection
speed of your computer, allowing you to enjoy a smoother and more
efficient network experience when performing tasks such as large
file downloads, online video conferences, and cloud office. For
gamers, connecting high-performance network card modules can
effectively reduce network latency, improve real-time game response
speed, and give you an advantage in intense gaming battles. In
terms of data storage, the adapter card supports connecting large
capacity mSATA hard drives, providing you with ample storage space.
Whether it's storing high-definition movies, large games, or
massive work documents, it can easily meet your needs and make your
computer no longer worry about insufficient storage space.
Compatible with multiple device types: Whether it is a laptop,
desktop computer, industrial control computer, server and other
professional equipment, as long as it has Mini PCI-e or mSATA
interfaces, Mini PCI-e/mSATA adapter cards can be perfectly
compatible with it, providing powerful expansion functions. This
extensive device adaptability has made it the preferred accessory
for many computer users and professional technicians when upgrading
devices and optimizing systems, greatly expanding its application
scope and market prospects.
Mini PCI-e/mSATA adapter cards have become a powerful assistant for
modern computer system expansion and upgrading due to their
excellent interface performance, sophisticated structural design,
and wide applicability. It can not only meet your urgent needs for
network performance improvement and storage capacity expansion, but
also bring you a more stable and reliable user experience, making
your computer full of new vitality and energy, and easily cope with
various complex and changing work and entertainment scenarios.
Definition of Mini PCI-e and mSATA interfaces
|
Mini PCI-e
| mSATA |
| Pin number | Signal name | Pin number | Signal name |
1
| WAKE(Definition of Mini PCI-e and mSATA interfaces) | 1 | NC(Undefined) |
| 2 |
3.3V
| 2 | 3.3V |
3
| RESEVED(Reserved) | 3 | NC(Undefined) |
4
| GND | 4 | GND |
5
| RESERVED(Reserved) | 5 | NC(Undefined) |
6
| 1.5V | 6 | NC(Undefined) |
7
| CLKREQ | 7 | NC(Undefined) |
8
| RESERVED(Reserved) | 8 | NC(Undefined) |
9
| GND | 9 | GND |
10
| RESERVED(Reserved) | 10 | NC(Undefined) |
11
| REFCLK- | 11 | NC(Undefined) |
12
| RESERVED(Reserved) | 12 | NC(Undefined) |
13
| REFCL+ | 13 | NC(Undefined) |
14
| RESERVED(Reserved) | 14 | NC(Undefined) |
15
| GND | 15 | GND |
16
| RESERVED(Reserved) | 16 | NC(Undefined) |
17
| RESERVED(Reserved) | 17 | NC(Undefined) |
18
| GND | 18 | GND |
19
| RESERVED(Reserved) | 19 | NC(Undefined) |
20
| RESERVED(Reserved) | 20 | NC(Undefined) |
21
| GND | 21 | GND |
22
| PERST | 22 | NC(Undefined) |
23
| PERPO(RXN) | 23 | TX+ |
24
| 3.3V | 24 | 3.3V |
25
| PERNO(RXP) | 25 | TX- |
26
| GND | 26 | GND |
27
| GND | 27 | GND |
28
| 1.5V | 28 | NC(Undefined) |
29
| GND | 29 | GND |
30
| SMB_CLK | 30 | NC(Undefined) |
31
| PETRO(TXN) | 31 | RX- |
32
| SMB_DATA | 32 | NC(Undefined) |
33
| PETPO(TXP) | 33 | RX+ |
34
| GND | 34 | GND |
35
| GND | 35 | GND |
36
| USB_D- | 36 | RESERVED(Reserved) |
37
| GND | 37 | GND |
38
| USB_D+ | 38 | RESERVED(Reserved) |
39
| 3.3V | 39 | 3.3V |
40
| GND | 40 | GND |
41
| 3.3V | 41 | 3.3V |
42
| LED_WWAN | 42 | NC(Undefined) |
43
| GND | 43 | GND |
44
| LED_WWAN | 44 | NC(Undefined) |
45
| RESERVED(Reserved) | 45 | RESERVED(Reserved) |
46
| LED_WPAN | 46 | NC(Undefined) |
47
| RESERVED(Reserved) | 47 | RESERVED(Reserved) |
48
| 1.5V | 48 | NC(Undefined) |
49
| RESERVED(Reserved) | 49 | DA/DSS(Device activation) |
50
| GND | 50 | GND |
51
| RESERVED(Reserved) | 51 | Presence Delection |
52
| 3.3V(Module working power supply) | 52 | 3.3V |

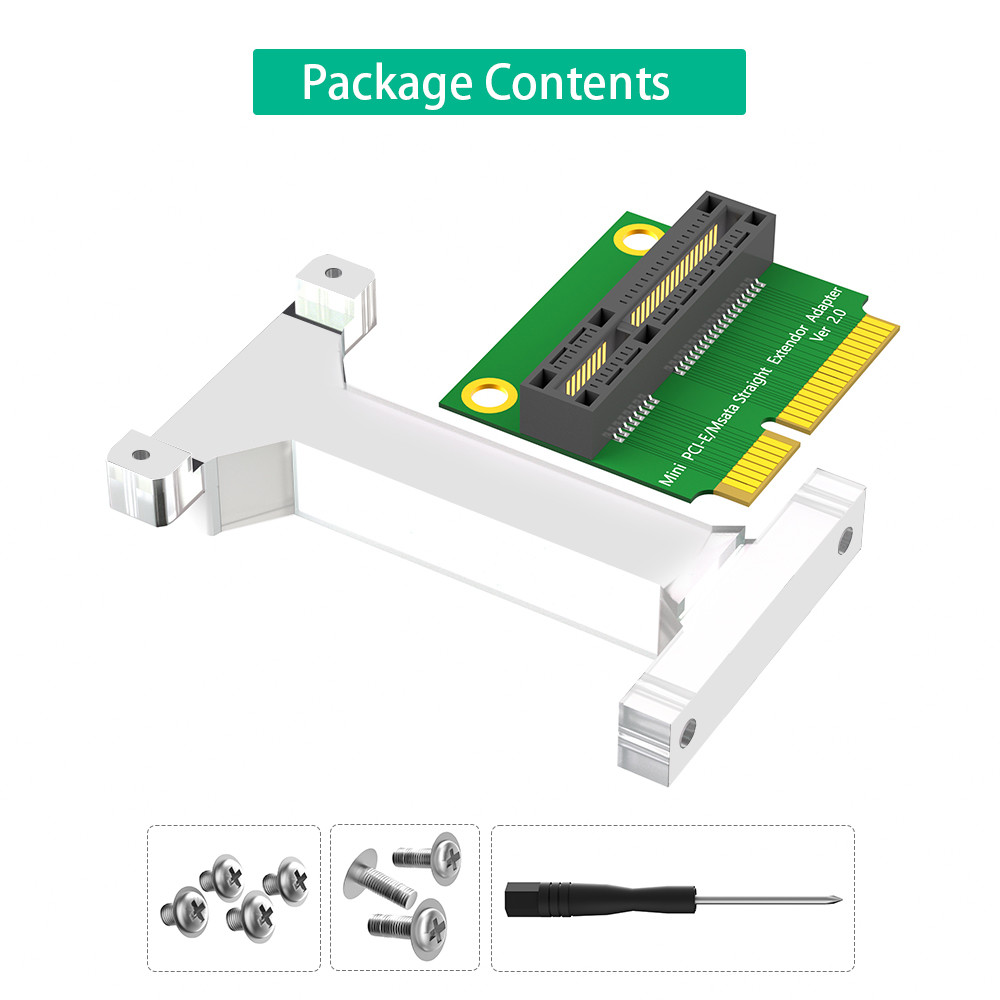

Package contents:
1xMini PCI-E(mSATA) Adapter
1x Plastic support frame
4 x M2 Screw
1x screwdriver
1x manual
