    3G 4G LTE Base HAT For Raspberry Asus Tinker Board Samsung ARTIK Latte Panda

    Ask Lasest Price
    Brand Name : BQZYX
    Model Number : ZYX170
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 190000 Pieces per Month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

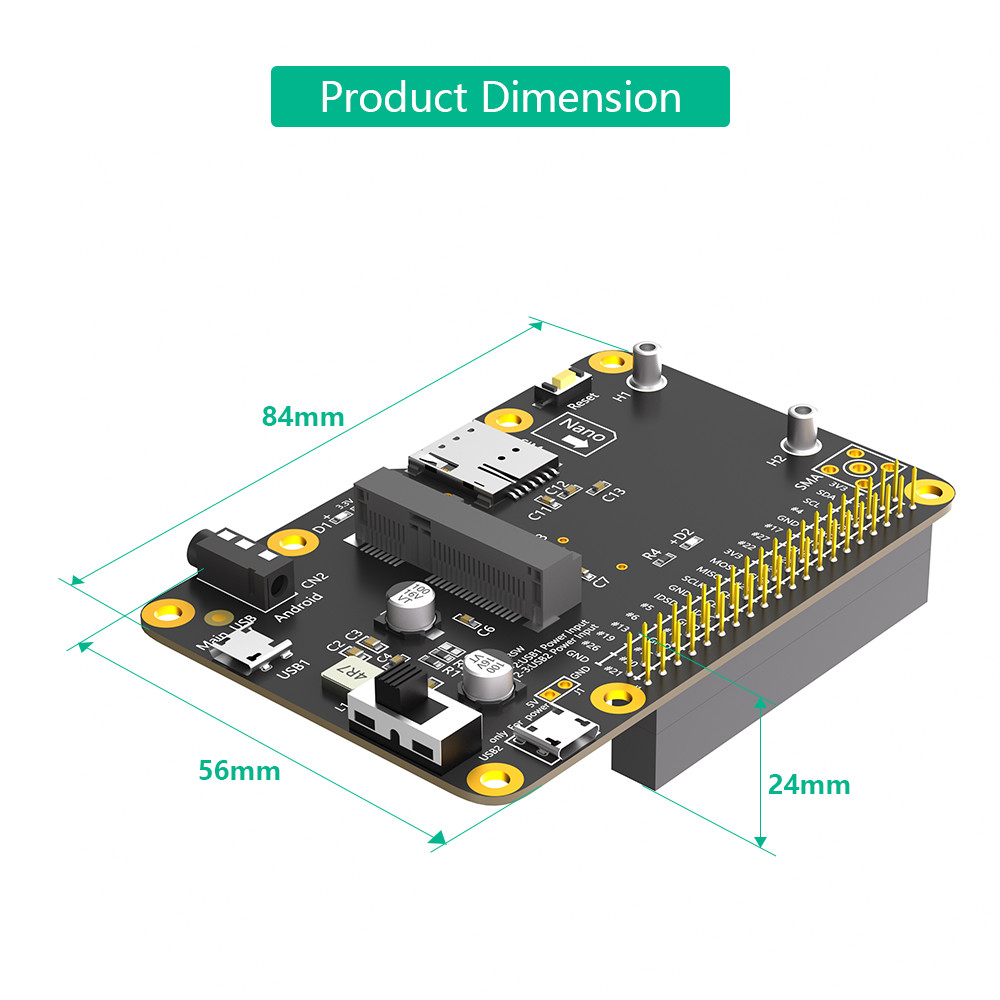

    3G 4G LTE Base HAT For Raspberry Asus Tinker Board Samsung ARTIK Latte Panda

    About Description:


    3G/4G & LTE Base HAT for Raspberry/ Asus Tinker Board/ Samsung ARTIK /Rock64 Media/Liber computer board


    Specifications:


    1.Fully compatible with Raspberry Pi models that have the 40-pin GPIO header (4, 3, 2, B+)


    2.Compatible the following brand Mini PCIe Modules
    Quectel: EC25/EC21/ EC20 /UC20/ LTE-EP06
    Sierra :AirPrime MC Series
    Telit: LM960, LE910V2, HE910, LE910Cx
    Huawei: ME909s-120, ME909s-821, and more
    Simcom: SIM7100, SIM7230, and more
    ZTE: ZM8620, and more
    U-Blox :MPCI-L2 Series
    Thales: PLS62W, mPLS8, mPLAS9


    3.Compatible the following brand Boards

    Raspberry Pi 4, 3, 2, B+
    Asus Tinker Board
    Rock 64*
    Samsung ARTIK’s board
    Latte Panda


    4.Clip-in Mini PCIe socket compatible with worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage with regional or global modules which work with different frequencies & carriers


    5.MANO SIM Card socket can easily reachable on the upside of the HAT.


    6.Can be used standalone with PC/Laptop over micro USB, without stacking with Raspberry Pi.


    7.Efficient and low quiescent current power circuit can hold up to 3Amps


    8.Working temperature range: -40°C ~ 80°C

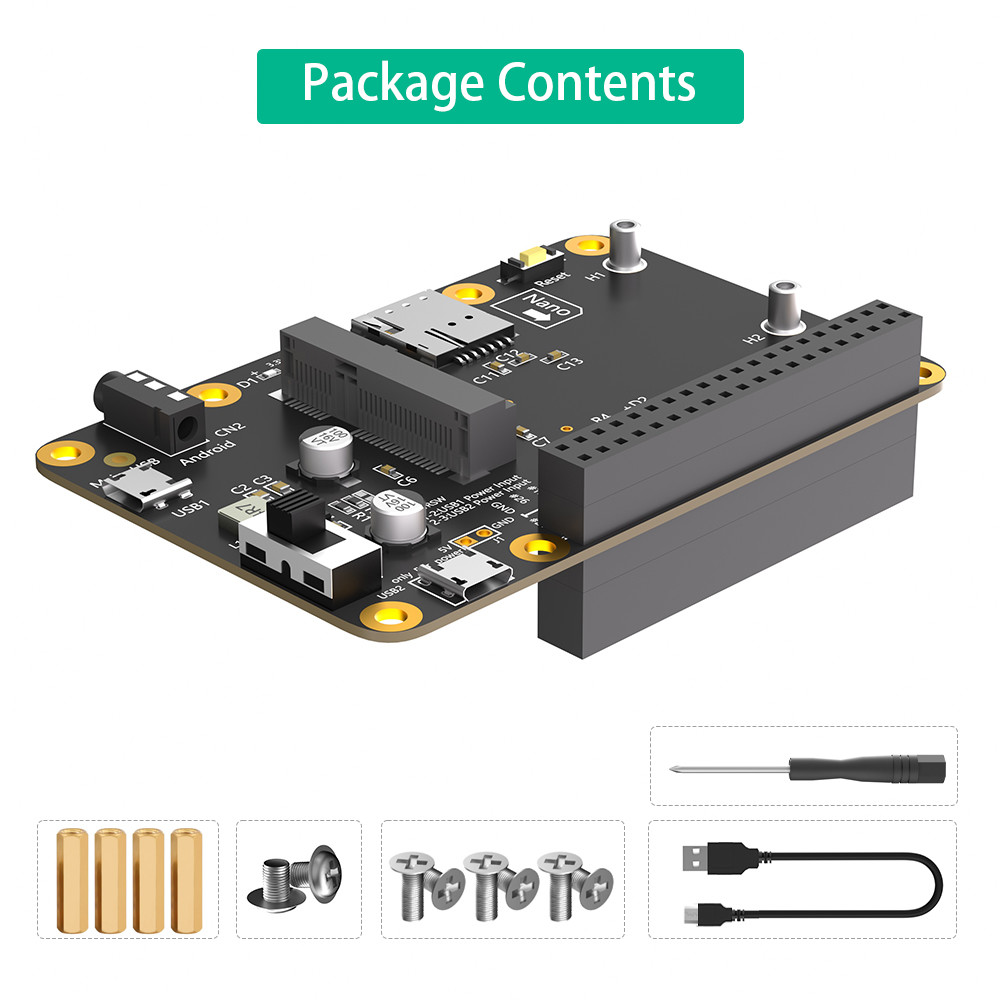

    Package contents:


    1x 3G/4G&LTE Base HAT


    1x USB 2.0 to Micro USB Cable


    1x Screw Driver


    8x copper nut


    8x M2.5 screw


    1x quick installation Guide.
