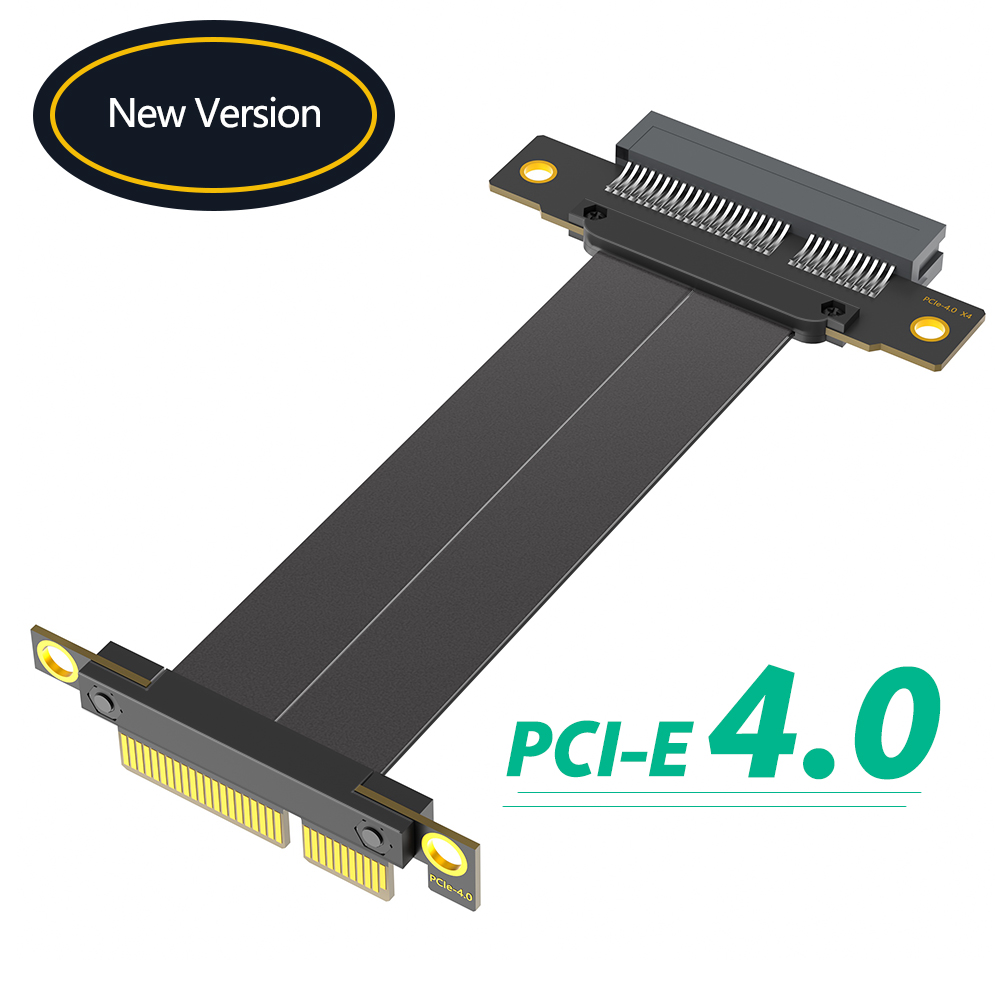

PCI-e PCI Express 4.0 4X Extension cable to PCI-E 4X ( dual
vertical 90 degree direction180 degree direction)
Product specifications:
1.Supports high speed PCI-E 1X, 4X,8X and16X card, but work at 4X
speed only.
2.New design with dual vertical 90 degrees direction for PCI-E
Card.
3.Total length: 14cm, cable length: 10cm.
4.High Speed flexible cable is for 1U,2U and ATX/BTX chassis.
5.Utilize high quality flexible cable which is extremely soft and
compact.
6.Easy to install and no need any soft driver.
7.Golden finger protection cover and dustproof design.
8.Experienced design and durable material for High frequency and
low attenuation.
9.PCB-Swaddled and fixed with Bolts and nut to prevent tearing and
short circuit for PCB-Cable solder points.
10.Stable PCIe Gen4 8Gbps or higher with high quality Axial Cable.
Product Overview:
This PCI-E 4X 4.0 extension cable is a connection cable for
converting PCI-E 4X 4.0 to PCI-E 4X 4.0 on a computer motherboard.
It can extend the PCI-E 4.0 interface on the motherboard, providing
users with more connection possibilities. Whether in 1U, 2U, or
ATX/BTX chassis, this extension cable can perform excellently and
is suitable for various computer configurations.
Product Features:
1. Wide device compatibility.
This extension cable can support PCI-E 1X, 4X, 8X, 16X devices and
has extremely high compatibility. Whether you are using
high-performance graphics cards, high-speed storage devices,or
other PCI-E interface hardware, stable connections can be achieved
through this extension cable.
No longer limited by the interface type of the device, it easily
connects various hardware specifications, providing great
convenience for upgrading and expanding your computer system.
2. True 4.0 transmission rate.
Adopting advanced technology and high-quality materials to ensure a
true transmission rate of 7GB/s. This means that you can instantly
transfer large amounts of data, whether it's for high-definition
video editing, large-scale game running, or large-scale data
backup, you can enjoy a super fast data transfer experience.
PCl Express
Edition | Line code | Transfer rate | Throughput |
| x1 | x4 | x8 | x16 |
| 1.0 | 8b/10b | 2.5GT/S | 250MB/S | 1GB/S | 2GB/S | 4GB/S |
| 2.0 | 8b/10b | 5GT/S | 5006MB/S | 2GB/S | 4GB/S | 8GB/S |
| 3.0 | 128b/130b | 8GT/S | 984.6MB/S | 3.938GB/S | 7.877GB/S | 15.754GB/S |
| 4.0 | 128b/130b | 16GT/S | 1.969GB/S | 7.877GB/S | 15.754GB/S | 31.508GB/S |
| 5.0 | 128b/130b | 32 or 25GT/S | 3.9 or 3.08GB/S | 15.8 or 12.3GB/S | 31.5 or 24.6GB/S | 63.0 or49.2GB/S |
| 6.0 | 128b/130b | 64.0 GT/S | 7.6 GB/S | 31.51GB/S | 63.02GB/S | 63.02GB/S |
The high-speed data transmission capability can greatly improve
work efficiency, reduce waiting time, and make your computer system
smoother and more efficient.
3. High speed flexible cable with strong toughness and bendability.
Adopting high-speed flexible cable design, it has extremely strong
toughness and bendability. This makes the extension cable more
flexible and convenient to install and use, and can adapt to
various complex chassis layouts and space limitations.
Adopting high-speed flexible cable design, it has extremely strong
toughness and bendability. This makes the extension cable more
flexible and convenient to install and use, and can adapt to
various complex chassis layouts and space limitations. Whether in a
small 1U chassis or a spacious ATX/BTX chassis, it can be easily
installed and wired without being difficult to bend or wasting
space due to hard cables.
At the same time, high-quality flexible cables also have good
durability, able to withstand long-term use and frequent bending,
ensuring stable connections and reliable data transmission.
4.Suitable for multiple types of chassis.
This extension cable can perfectly adapt to 1U, 2U, or ATX/BTX
chassis. Whether you are building a small server, high-performance
gaming console, or office computer, you can choose the appropriate
chassis type according to your needs and use this extension cable
to connect PCI-E 1X - PCI-E 4X - PCI-E 8X - PCI-E 16X devices.
The compatibility of different chassis types makes this extension
cable widely applicable, meeting the needs of different users.
Product advantages:
1. Improve the scalability of computer systems.
By using PCI-E 4X 4.0 extension cords, you can install PCI-E
devices in more suitable locations, avoiding the problem of
hardware installation due to chassis space limitations. This
greatly enhances the scalability of the computer system, allowing
you to add or replace hardware devices at any time according to
your own needs.
2. Optimize the internal layout of the chassis.
The use of extension cords can make the layout inside the chassis
more reasonable and tidy. You can install PCI-E devices in a
location far away from other hardware to reduce electromagnetic
interference and heat dissipation issues, and improve the stability
and performance of your computer system.
Meanwhile, a reasonable layout can also improve the air circulation
inside the chassis, which helps with heat dissipation and extends
the lifespan of hardware.
3. Convenient hardware upgrade and maintenance.
When upgrading or maintaining PCI-E devices, using extension cords
can make the operation more convenient. You don't need to
disassemble the entire chassis, just take out the devices connected
to the extension cable for upgrading or maintenance, greatly saving
time and effort.
4.High quality product guarantee.
We are committed to providing users with high-quality products.
This PCI-E 4X 4.0 extension line has undergone strict quality
inspection and testing to ensure its stable and reliable
performance. We provide high-quality after-sales service, allowing
you to purchase without any worries.
In summary, our PCI-E 4X 4.0 extension cable is a powerful and
high-performance computer hardware product. It has a wide range of
device compatibility, a true 7GB/s transfer rate, high-speed
flexiblecables, and is suitable for multiple chassis types, which
can bring more connectivity possibilities and higher performance to
your computer system. Choose our PCI-E 4X 4.0 extension cable to
breakthrough limitations and enjoy high-speed connectivity.
2.PCI-E 4x 180 ° 4.0 to PCI-E 4x 90 ° 4.0 computer expansion cable
product interface edge connectionless compatible with
PCI-E1X-PCI-E4X-PCI-E8X-PCI-E16X devices Signal file transmission
does not slow down.
3.PCI-E 4x 90 ° 4.0 to PCI-E 4x 90 ° 4.0 computer expansion cable
product interface edge connectionless compatible with
PCI-E1X-PCI-E4X-PCI-E8X-PCI-E16X devices Signal file transmission
does not slow down.
4.PCI-E 4x 90° 4.0 to PCI-E 4x 180° 4.0 computer expansion cable
product interface edge connectionless compatible with
PCI-E1X-PCI-E4X-PCI-E8X-PCI-E16X devices Signal file transmission
does not slow down.
